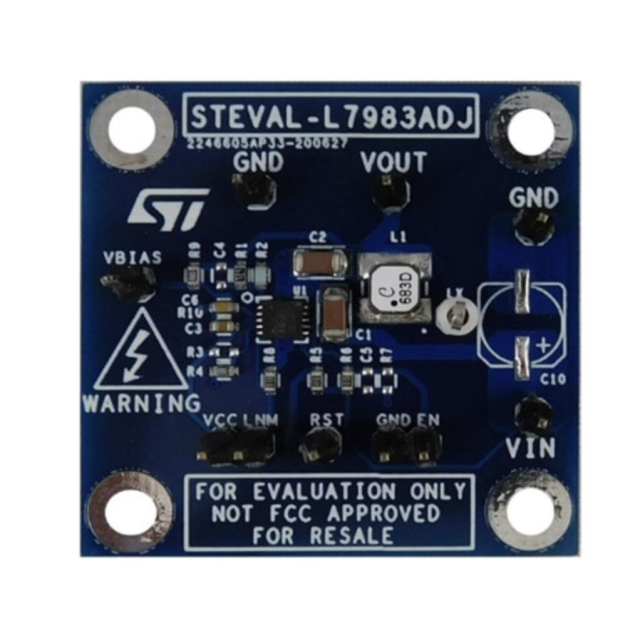

STEVAL-L7983ADJ
GET A QUOTE
DATASHEET
Share:
facebook
line
twitter
whatsapp
pinterest
tumblr
linkedin
Description
DigiKey Part Number
497-STEVAL-L7983ADJ-ND
Manufacturer
STMicroelectronics
Manufacturer Product Number
STEVAL-L7983ADJ
Description
EVAL BOARD FOR L7983PUR
Manufacturer Standard Lead Time
26 Weeks
Features
3.5 V to 60 V operating input voltage
Fixed output voltage (3.3 V and 5 V) or adjustable from 0.85 V to V
IN
300 mA DC output current
Dynamic low consumption mode to low noise mode selection
10 µA operating quiescent current (L7983PU33R, V
IN
> 24 V, LCM)
2.3 µA shutdown current
200 kHz to 2.2 MHz programmable switching frequency
Optional spread spectrum (dithering)
Internal soft-start
Enable / adjustable UVLO threshold
Synchronization to external clock
Internal compensation network
Internal current limiting
Overvoltage protection
Output voltage sequencing
Applications
Designed for 12 V, 24 V, and 48 V buses
Battery-powered applications
Decentralized intelligent nodes
Failsafe system
Sensors and low noise applications (LNM)
