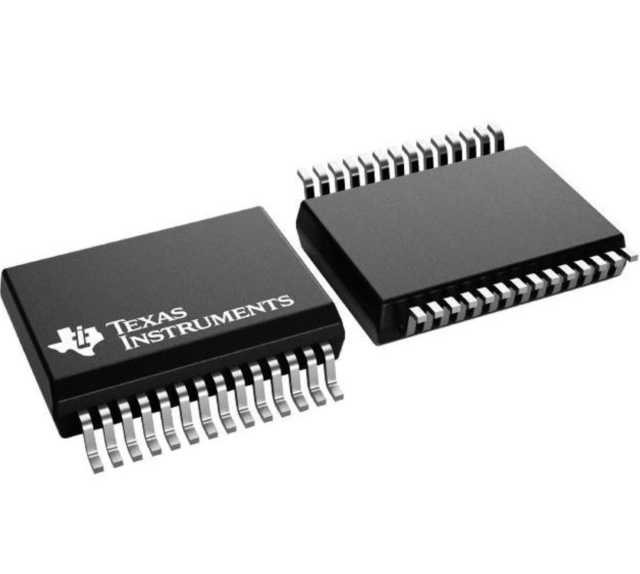

ISOUSB211DPR

GET A QUOTE DATASHEET

Description

DigiKey Part Number	296-ISOUSB211DPRTR-ND - Tape & Reel (TR) 296-ISOUSB211DPRCT-ND - Cut Tape (CT) 296-ISOUSB211DPRDKR-ND - Digi-Reel®
Manufacturer	Texas Instruments
Manufacturer Product Number	ISOUSB211DPR
Description	LOW EMISSIONS, HIGH/FULL/LOW SPE
Manufacturer Standard Lead Time	12 Weeks

Features

USB 2.0-compliant
Supports low-speed (1.5 Mbps), full-speed (12 Mbps), and high-speed (480 Mbps) signaling
Does not need an external crystal or clock input
Automatic speed and connection detection
Supports L1 (sleep) and L2 (suspend) low-power states
Programmable equalization compensates board trace loss in high-speed mode
CDP advertising on the downstream side
Supply OK indication on the opposite side
Supports automatic role reversal for USB OTG and Type-C DRP designs
High CMTI: 100 kV/µs

±8 kV IEC 61000-4-2 contact discharge protection across the isolation barrier
V_BUS voltage range: 4.25 V to 5.5 V
- Internal LDOs: 3.3 V and 1.8 V
Meets CISPR32 Class B emissions limits
Ambient temperature range: -40°C to +125°C
Small footprint 28-SSOP package
Safety-related certifications:
- 7,071 V_PK V_IOTM and 2,121 V_PK V_IORM (reinforced and basic options) per DIN EN IEC 60747-17 (VDE 0884-17)
- Isolation: 5,000 V_RMS for 1 minute per UL 1577
- IEC 62368-1, IEC 60601-1, and IEC 61010-1 certifications
- CQC, TUV, and CSA certifications
