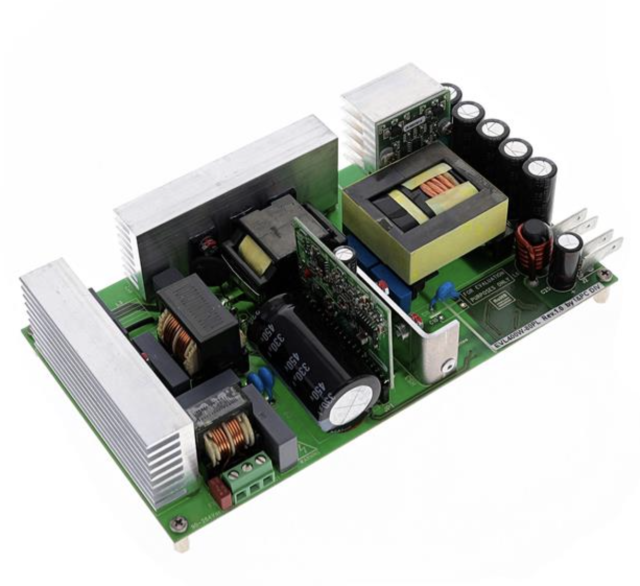

EVL400W-80PL
GET A QUOTE
DATASHEET
Share:
facebook
line
twitter
whatsapp
pinterest
tumblr
linkedin
Description
DigiKey Part Number
497-EVL400W-80PL-ND
Manufacturer
STMicroelectronics
Manufacturer Product Number
EVL400W-80PL
Description
EVAL BOARD L4985A L6699 SRK2001
Manufacturer Standard Lead Time
99 Weeks
Features
Universal input mains voltage range: from 90 V
AC
to 264 V
AC
frequency from 45 Hz to 65 Hz
Output voltage: 12 V at 33 A continuous operation
Overall efficiency at full load: >89%, according to ENERGY STAR® 6.1 limit for computer and compliant with 80Plus PLATINUM level
Average efficiency: >89%, according to European CoC ver. 5 Tier 2 for external power supplies
Efficiency at 250 mW >50%, compliant to EuP lot 6 Tier 2 limit for household and office equipment
No load mains consumption: <150 mW at 230 V
AC
, below European CoC ver. 5 Tier 2 limit for external power supplies
Mains harmonics: meets EN-61000-3-2 Class-D and JEITA-MITI Class-D
EMI: according to EN55022 Class-B
Safety: meets EN60950 standards
RoHS compliant
